HIGHSPEED TRION3/TRION POWER MODULES

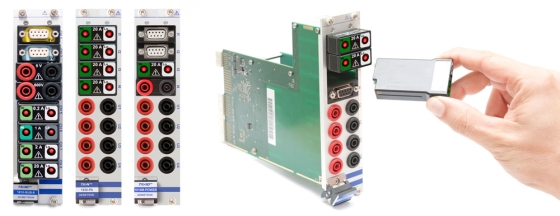

Highspeed power modules of the TRION3 and TRION series for 4-phase power analysis are user-exchangeable signal conditioning modules that provide separate A/D conversion on each channel up to 10 MS/s. Because of the unique modularity, up to 8 channels can be equipped with different user-exchangeable sub-modules for direct current or voltage measurement. Any TRION(3) based data acquisition system can become a Power Analyzer.

Simultaneous sampling for all analog inputs
High resolution up to 24-bit, with anti-aliasing filters

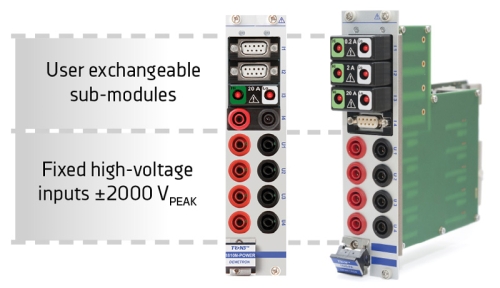

High voltage & current inputs and high flexibility with sub-modules

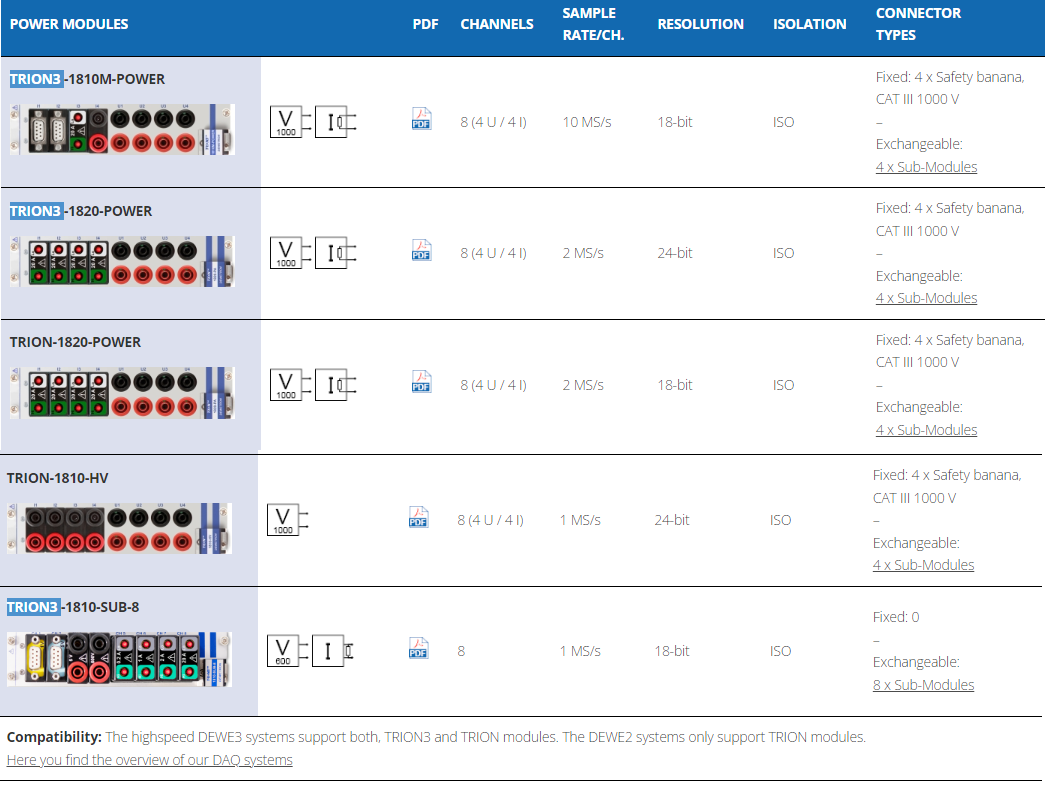

POWER MODULES

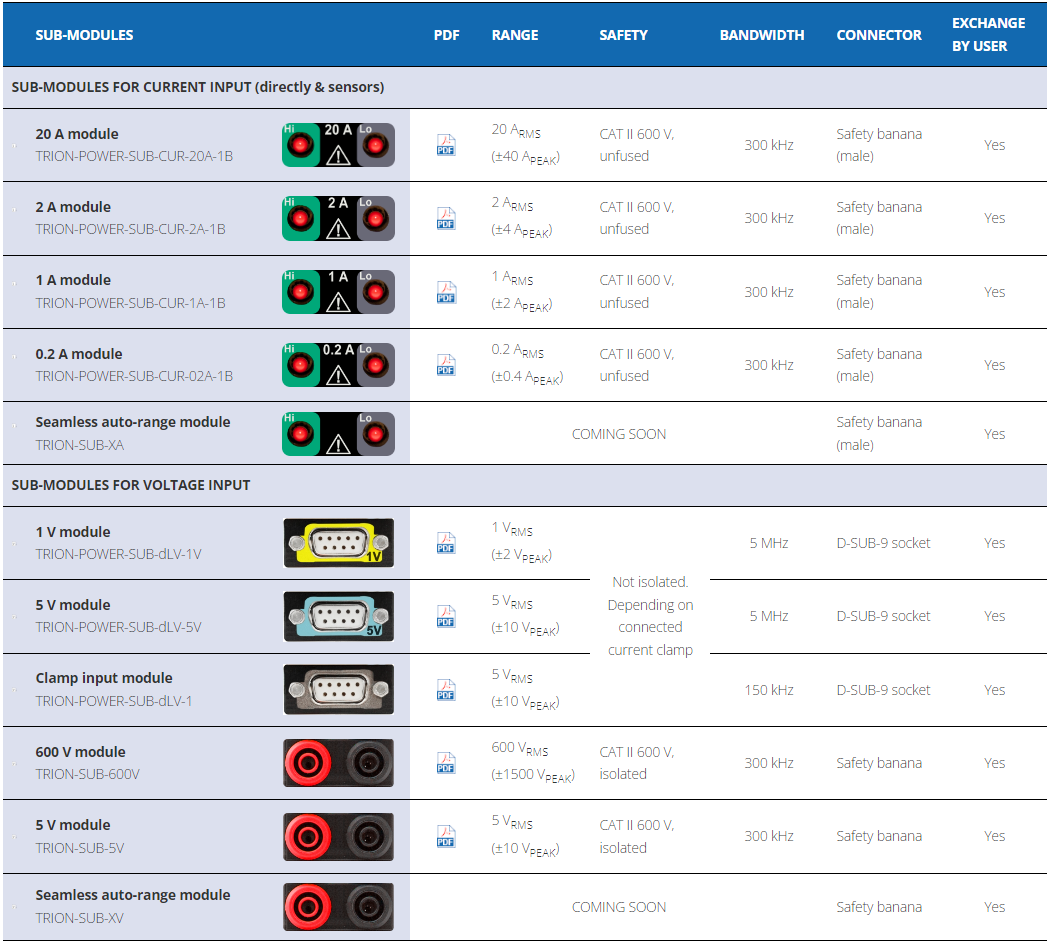

USER-EXCHANGEABLE TRION SUB-MODULES

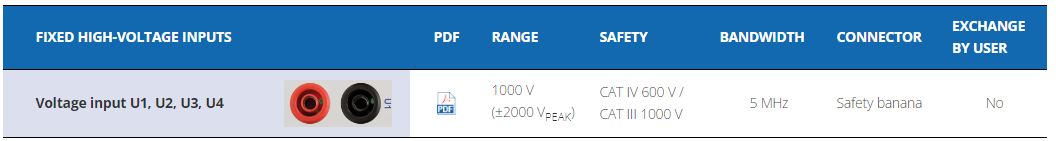

Fixed High-Voltage Inputs

for more info:

https://www.dewetron.com/2022/03/trion3-1810-sub-8-and-trion3-18xx-power-module/
